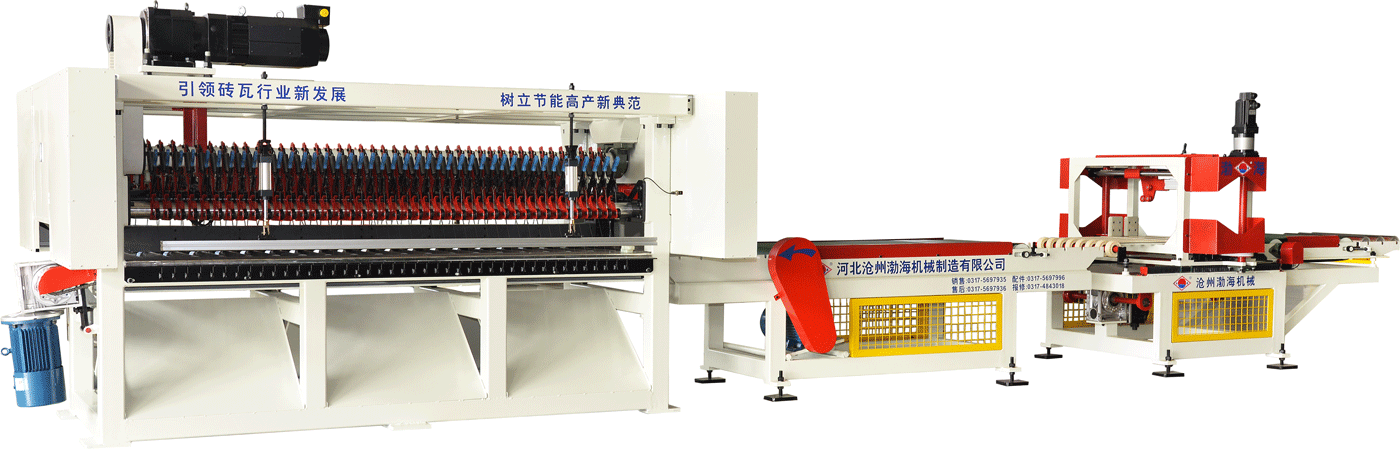

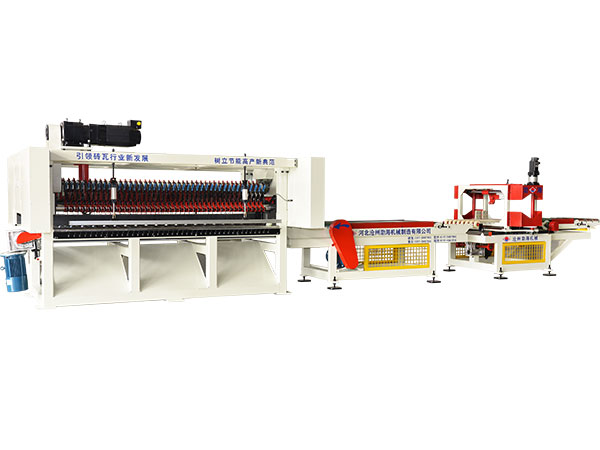

Double mud strip two-way strip blank cutting machine for more than 60, 75 large size, high capacity, full of hard plastic host production line design, thrust is strong, high structural strength. Applicable to the shale, coal gangue as raw material, standard bricks, porous brick, large block.Cutting
Product introduction
Double mud strip two-way strip blank cutting machine for more than 60, 75 large size, high capacity, full of hard plastic host production line design, thrust is strong, high structural strength. Applicable to the shale, coal gangue as raw material, standard bricks, porous brick, large block.
Cutting frequency 18 times/min or less, cutting height is 260 mm, cut the clay bar length: 1750-2500 - mm
| Date | Units of meas | 雙泥條雙向切條切坯機 |
| Power | kw | 24 |
| Cutting frequency | times/min | 10-18 |
| Production capacity | pieces/h | 20000-70000 |
| Overall dimension | mm | 11000*3500*1700 |
Product features:
This machine has the function of curing the soil will be fully stirring, mixing, raw materials and water can fully improve the plasticity of materials.
Second, the technical parameters:
| Date | Units of meas | SJ400×50 | SJ400×43 | SJ350×36 | SJ300×36 |
| Production capacity | m3/h | 60-100 | 50-80 | 40-70 | 40-70 |
| Agitator shaft speed | r/min | 38 | 40 | 45 | 45 |
| Power | kw | 110 | 75 | 55 | 45 |
| Overall dimeter | mm | 7800×1650×1100 | 7400×1550×1000 | 6700×1450×950 | 6000×1450×950 |
| Mixing diameter | mm | 550 | 500 | 450 | 450 |
